Motherboard Asus Maximus V Extreme

Motherboard Asus Maximus V Extreme dengan Native Intel Thunderbolt bagi penggemar Game,merupakan sebuah motherboard terbaik dari yang terbaik yang menawarkan Hardware bagus didukung perfoma tercepat merupakan ide yang inovatif,motherbord yang memiliki kunci untuk monitoring Real time dengan Overlay Grafis nyaman ditampilkan pada layar dengan monitor OSD,Status Hardware lengkap membaca dari VGA hotwire dan sense Subzero semua dengan Hardware murni.

konektivitas tambahan langsung ke motherboard ROG dan berkata begitu lama untuk keterbatasan fisik. Combo yang unik melekat pada motherboard I / O, dan dilengkapi dengan satu port mSATA mendukung Intel ® Response Technology percepatan Cerdas hybrid SSD mSATA penyimpanan dengan kompatibel, dan dual band 2,4 / 5 GHz Wi-Fi 802.11 a / b / g / n dan Bluetooth v4.0 kartu tergabung dalam nya PCI port mini Ekspres 2.0/USB combo 2.0 di sisi berlawanan. Dengan cara ini, Anda dapat menghubungkan perangkat tambahan tanpa mengambil ruang yang berharga pada motherboard

60% Meningkatkan Hybrid Graphics dan Konversi Video 3X Lebih Cepat
LucidLogix Virtu MVP menampilkan HyperFormance ™ Technology meningkatkan kartu grafis diskrit Anda hingga 60% melampaui kinerja aslinya melalui uji 3DMark Vantage. Dirancang untuk Intel ® prosesor grafis dan Windows ® 7 PC, sempurna menggabungkan kinerja kartu grafis diskrit dengan iGPU komputasi yang cepat. Juga dengan Sync Virtual baru dirancang, pengguna dapat menikmati pengalaman gaming halus dengan menghilangkan artefak robek. LucidLogix Virtu MVP juga bisa secara dinamis memberikan tugas kepada sumber daya grafis terbaik yang tersedia, berdasarkan beban daya, kinerja dan sistem. Hal ini memungkinkan pengguna untuk sepenuhnya memanfaatkan konversi video 3x lebih cepat dengan Intel ® Cepat Sync Video 2.0 teknologi sementara tetap mempertahankan high-end 3D rendering dan kinerja gaming, disediakan oleh NVIDIA ® dan kartu grafis AMD.
Spesipikasi:

CPU Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset Intel® Z77
Memori 4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
(Qualified Vendors Lists).
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Thunderbolt VGA output support
Data transfer rate up to 10 Gbps
Daisy-chain up to 6 Thunderbolt devices
Grafis Integrated Graphics Processor
Dukungan output Multi-VGA : HDMI/DisplayPort/Thunderbolt port
- Mendukung HDMI dengan resolusi maks. 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
- Supports Thunderbolt with max. resolution 2560 x 1600 @ 60 Hz
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Dukungan Multi-GPU Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *1
Slot Ekspansi 5 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x16/x8 or x8/x16/x8/x8) *2
1 x PCIe 2.0 x4
1 x mini-PCIe 2.0 x1 *3
Storage Intel® Z77 chipset : *4
2 x SATA 6Gb/s port(s), red
3 x SATA 3Gb/s port(s), black
1 x mini-SATA 3Gb/s port(s) , black
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *5
ASMedia® PCIe SATA controller : *6
4 x SATA 6Gb/s port(s), red
LAN Intel®, 1 x Gigabit LAN Controller(s)
Wireless Data Network Wi-Fi 802.11 a/b/g/n
Supports dual band frequency 2.4/5 GHz
Bluetooth Bluetooth V4.0
Bluetooth V3.0+HS
Audio Realtek® ALC898 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
- Optical S/PDIF in port(s) at back panel
Port USB Intel® Z77 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset :
8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Fitur-Fitur Overclocking mPCIe Combo™ (mPCIe/mSATA combo card)
ROG OC Key
- OSD TweakIt
- OSD Monitor
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
- GPU TweakIt
Extreme Engine Digi+ II :
- 8 -phase CPU power design + 4 -phase iGPU power design
- 2 -phase Memory power design
ROG Extreme OC kit :
- Subzero Sense
- VGA Hotwire
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- EZ Plug
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
iROG
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Fitur-Fitur Khusus ASUS TurboV EVO :
- TurboV
ASUS EPU :
- EPU
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Port I/O Belakang 1 x PS/2 keyboard/mouse combo port(s)
1 x Thunderbolt port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
1 x Optical S/PDIF in
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
I/O Internal 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
3 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
3 x Optional Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x 6-pin EZ_PLUG Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x OC Key header(s)
2 x Subzero Sense connector(s)
2 x VGA Hotwire(s)
1 x Slow Mode switch(es)
15 x ProbeIt Measurement Points
7 x ProbeIt cable connector(s)
3 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x ROG Connect switch(es)
1 x LN2 Mode switch(es)
1 x Go Button(s)
1 x BIOS Switch button(s)
1 x mPCIe Combo header(s)
Aksesori User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
6 x SATA 6Gb/s cable(s)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB 2.0 and eSATA module(s)
1 x ROG Connect cable(s)
1 x ProbeIt cable set(s)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo card(s) with dual band WiFi 802.11 a/b/g/n module + Bluetooth v4.0/3.0+HS module
1 x 2-in-1 RF Cable(s)
2 x Wi-Fi Ring Moving Antenna(s)
1 x OC Key(s)
1 x OC Key cable(s)
BIOS 64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Kemampuan Manajemen WfM2.0, DMI2.0, WOL by PME, PXE
Disc Pendukung Drivers
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ROG CPU-Z
Mem TweakIt
ASUS AI Suite II
ASUS WebStorage
ASUS Utilities
Form Factor Extended ATX Form Factor
12.0 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
Catatan *1: LucidLogix Virtu MVP supports Windows 7 operating systems.
2-1: PCIe3.0 speed is supported by Intel® 3rd genernation Core™ Processors.
2-2: Native x8/x8 mode is available when only PCIE_X16X/X8_1 and PCIE_X8_2B slots are in used.
3-1: The mini-PCIe slot is on mPCIe Combo™ expansion card.
3-2: The mini-PCIe slot is pre-installed with an Wi-Fi/Bluetooth module.
4-1: 1 SATA 3Gb/s port at mid-board is reserved for eSATA.
4-2: A 2-port USB 2.0 and eSATA module is bundled for 1 x eSATA port at rear.
4-3: The mini-SATA slot is on mPCIe Combo™ expansion card.
5: Supports on Intel® Core™ processor family with Windows® 7 operating systems.
6: These SATA ports are for data drives only.

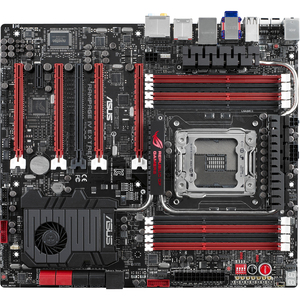

So thats all guys, you may also like another Asus Maximus Extreme series, you can try to see the Exteme Rampage IV series here :



Enjoy.
